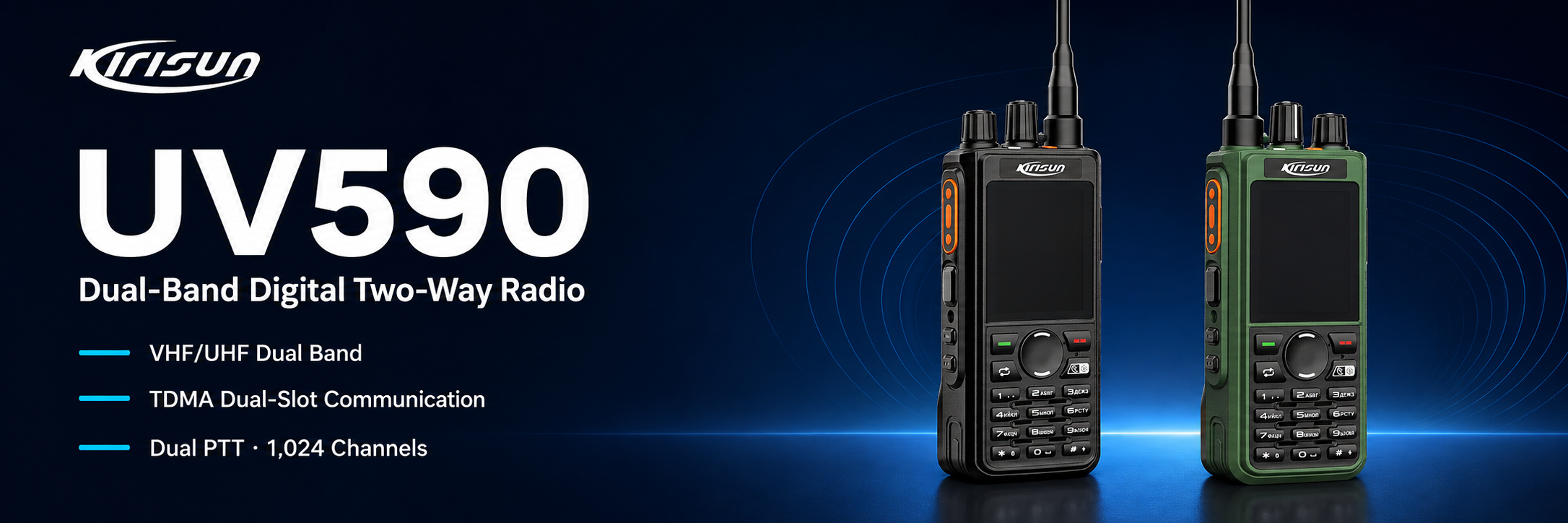

Kirisun Launches UV590 Dual-Band Digital Two-Way Radio
Release: 2026.08.27


Kirisun has introduced the UV590, a versatile dual-band digital two-way radio designed to deliver efficient and secure communications for government, enterprise, and professional users.


Featuring TDMA direct-mode dual-slot technology, the Kirisun UV590 supports two simultaneous voice calls on a single frequency, doubling channel capacity without requiring a repeater. Its analog and digital operation enables smooth integration with existing radio systems while supporting future digital migration.


The UV590 covers both VHF 136–174 MHz and UHF 400–480 MHz bands, providing flexible communication across open areas and complex indoor environments. Dual PTT buttons allow users to monitor two channels and communicate with separate teams from one device. A 2.4-inch color display ensures clear visibility, even in bright outdoor conditions.


With up to 1,024 channels, 6–8W high transmission power, 2W audio output, and a 3,000mAh battery, the UV590 is built for dependable daily operation. Its USB Type-C interface supports both charging and programming, while front-panel channel editing enables rapid on-site configuration without a computer.


Advanced encryption, emergency alerts, remote disable and enable, text messaging, scanning, and password-protected programming further enhance communication security and operational control.


The Kirisun UV590 offers a flexible, user-friendly solution for teams that need reliable communication across diverse working environments.


Specifications

Category

Item

Specification

General

Frequency Range

UHF: 400–480 MHz
VHF: 136–174 MHz


Channel Capacity

1,024


Zones

64


Languages

English, Russian


Operating Mode

Analog / Digital


Channel Spacing

12.5 kHz / 25 kHz


Weight

Approx. 340 g, including standard battery and antenna


Dimensions (H × W × D)

143 × 64 × 34 mm, with standard battery and without antenna


Operating Voltage

7.7 V (rated)


Battery Capacity

3,000 mAh


Antenna Impedance

50 Ω


Frequency Stability

±1.0 ppm

Receiver

Sensitivity

Analog: 0.18 μV (12 dB SINAD)
Digital: 0.18 μV / BER 5%


Intermodulation

≥50 dB @ 12.5/25 kHz


Adjacent Channel Selectivity

≥60 dB @ 12.5 kHz
≥70 dB @ 25 kHz


Blocking

≥84 dB


Maximum Audio Output Power

2 W


Rated Audio Distortion

≤3%


Signal-to-Noise Ratio

≥40 dB @ 12.5 kHz
≥45 dB @ 25 kHz


Conducted Spurious Emission

≤−57 dBm

Transmitter

RF Output Power

Low power: 1 W
High power: 6–8 W


FM Emission Designation

11K0F3E @ 12.5 kHz
14K0F3E @ 20 kHz
16K0F3E @ 25 kHz


4FSK Digital Modulation

12.5 kHz, data only: 7K60FXD
12.5 kHz, voice and data: 7K60FXW


Spurious Emissions

≤−26 dBm below 1 GHz
≤−30 dBm above 1 GHz


Adjacent Channel Power

≤−60 dB @ 12.5 kHz
≤−70 dB @ 25 kHz


Transmit Bit Error Rate

0%


Modulation Limiting

±2.5 kHz @ 12.5 kHz
±5.0 kHz @ 25 kHz


Audio Distortion

≤3%

Environmental

Operating Temperature

−30°C to +60°C


Storage Temperature

−40°C to +80°C
